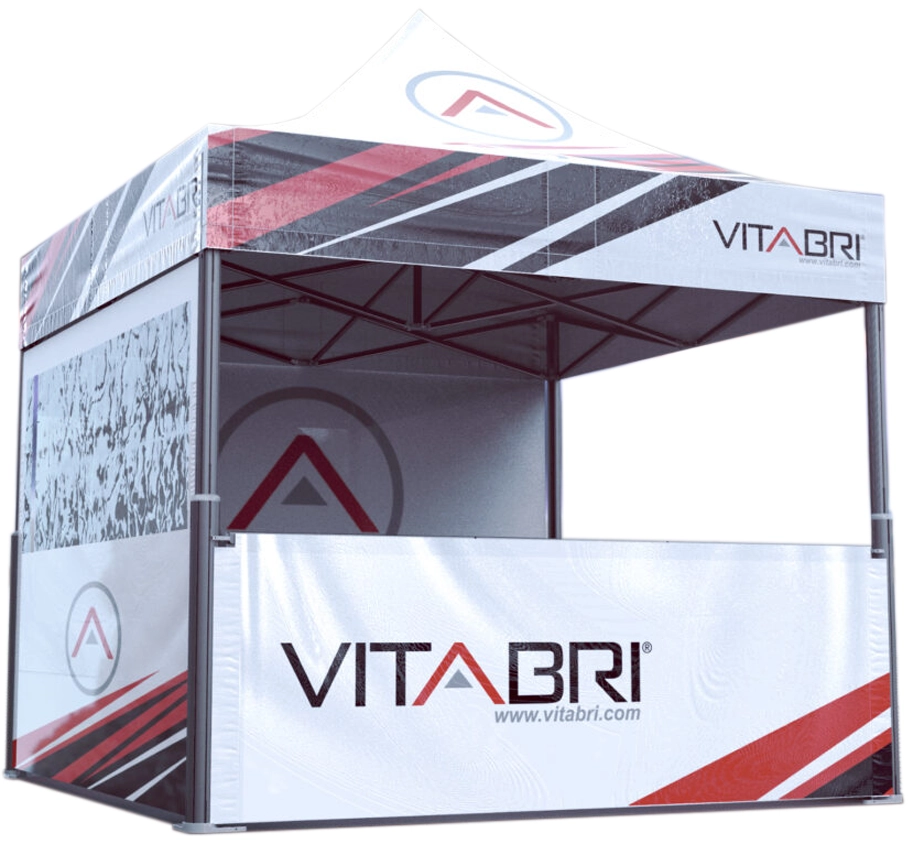

VITABRI V2 pop-up tent
The V2 model is the world’s strongest structure among pop-up tents.
The innovative technology of gas booms installed in the legs has made the V2 set-up much easier.
This structure unfolding system has been patented by VITABRI and we are the only company in the world to offer such a solution.
If you are looking for a premium tent, the VITABRI V2 will definitely meet your expectations.
Available sizes: 3×3 m; 3×4.5 m; 4×4 m; 4×6 m; 5×5 m
5-year warranty for VITABRI V2 structures!
V2 – TECHNICAL SPECIFICATIONS
108 MM PROFILE LEG
RATCHET STRUCTURE LOCKING SYSTEM
HEIGHT-ADJUSTABLE GAS CYLINDERS
ALUMINUM CONNECTORS
6-FOLD REINFORCED CROSSPIECES
REMOVABLE TRANSPORT WHEELS
STEEL GUY-ROPE HOLDER

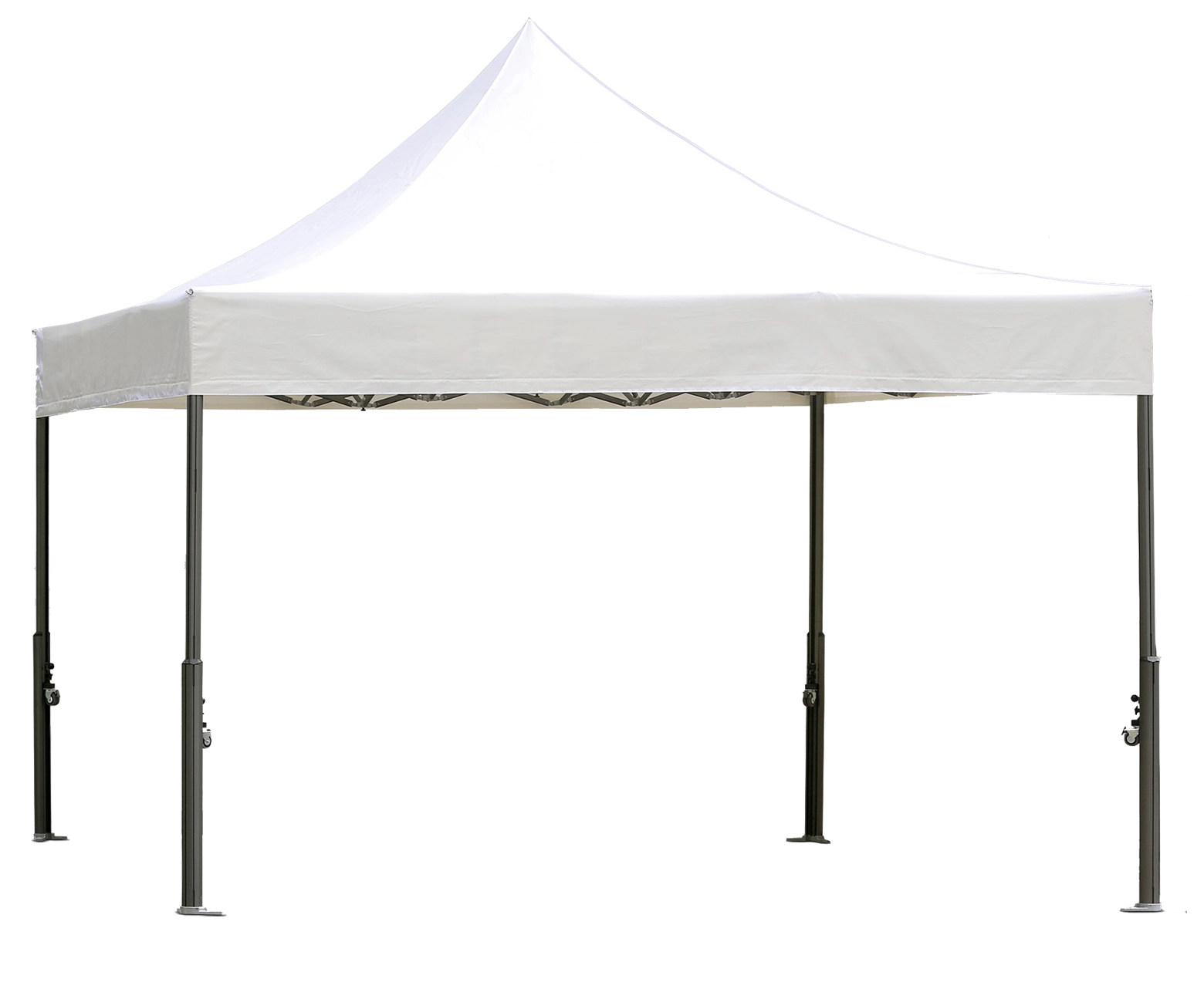

VITABRI V2:
- V2 structure made of 100% hard aluminum.
- Leg profile with a diameter of 108 mm and aluminum wall thickness of 3 mm – the largest on the market!
- GAS BOOM TECHNOLOGY, with gas booms located in the legs, makes the set up easier and more effortless, even for large structures.
- The fasteners are made of cast aluminum, which makes them very durable.
- 6-fold reinforced crosspieces along the entire length, finished with polyamide.
- The structure is screwed with self-tapping INOX screws.
- Very stable aluminum leg foot.

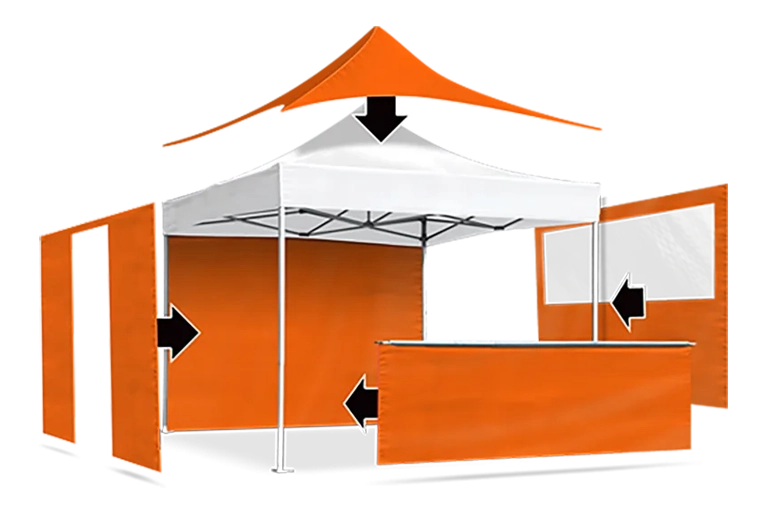

- Easy wall mounting system with a welt that slides into the guide.
- Metal rings in the structure to attach guy-ropes.
- Sturdy removable wheels for transporting and setting up the frame.
- Accessories, such as lighting, TV, heater, reinforcements, etc., are attached with brackets in the upper part of the leg.
- The weights for the V2 tent are attached with special plates applied directly to the foot.
- V2 resistance to winds of up to 100 km/h.
- 5-year warranty for VITABRI V2 structures and lifetime after-sales service
VITABRI V2 TENTS – TECHNICAL SPECIFICATIONS
| Actual | Folded size (m) | Weight | Entrance height (m) | Total height (m) | Number of poles | Number of legs |
3 x 3m | 3,06 x 3,06 | 0,50 x 0,50 x 1,75 | 70,5 | 2,06 | 3,61 | 1 | 4 |
3 x 4.5m | 3,06 x 4,57 | 0,50 x 0,60 x 1,75 | 81,5 | 2,06 | 3,72 | 2 | 4 |
4 x 6m | 3,94 x 5,88 | 0,65 x 0,75 x 2,25 | 101 | 2,47 | 4,40 | 2 | 4 |
5 x 5m | 4,95 x 4,95 | 0,60 x 0,60 x 2,00 | 113 | 2,24 | 4,28 | 1 | 4 |
3x3 m VITABRI V2 PRESENTATION
5x5 m VITABRI V2 PRESENTATION
